Pipe2016: GoFlow (Sprinkler System Analysis)

Pipe2016 Demo

Pipe2016 GoFlow:  Developed for sprinkler system analysis with input from 2 major insurance companies. Includes automatic layouts, over 200 backflow preventers, pipe schedules from 3 different hazard classifications, supply plot, hydraulic summary, required capacity, remote area analysis and Early Suppression, Fast Response (ESFR).

Click here for a list of supported devices
Click here for a discussion of NFPA reporting requirements

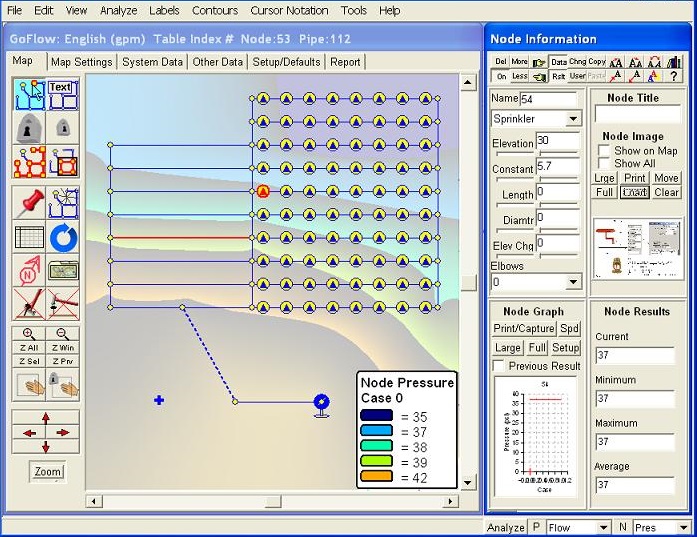

Laying Out a System in Pipe2016: GoFlow

KYPipe Pipe2016 Goflow

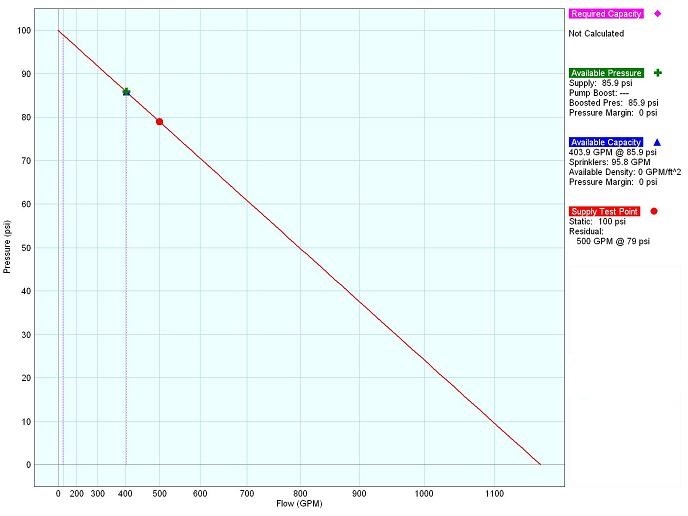

 Supply Plot

GoFlow Supply Curve

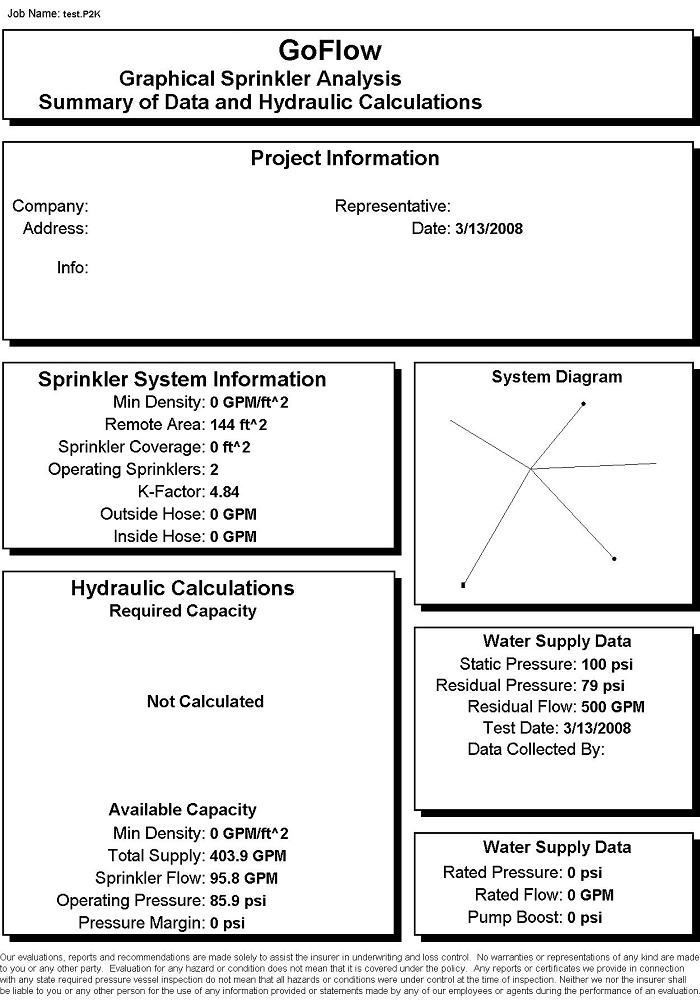

GoFlow Analysis Summary

Pipe2014: GoFlow Analysis Summary
