SWMM (Storm Water Analysis)

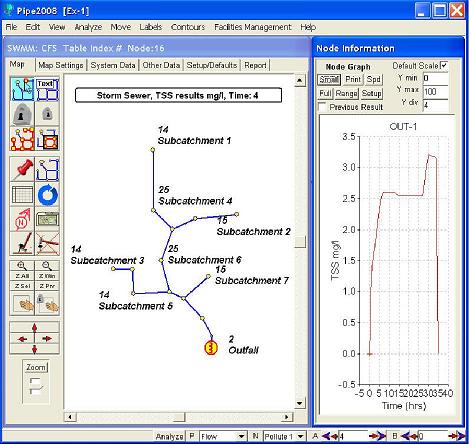

KYPipe Pipe2022 SWMMSWMM
(Storm Water)

Pipe2018: Demo

Analyzes storm water and sanitary systems for pressure and partial flow scenarios using the latest EPA SWMM 5.0 engine.  SWMM is a “dynamic rainfall-runoff simulation model used for single event or long-term (continuous) simulation of runoff quantity and quality from primarily urban areas.” SWMM “operates on a collection of subcatchment areas that receive precipitation and generates runoff and pollutant loads . . . (and) transports this runoff through a system of pipes, channels, storage/treatment devices, pumps, and regulators.” Output includes “the quantity and quality of runoff . . . the flow rate, flow depth, and quality of water in each pipe and channel during a simulation period.” Click here for a list of supported devices. Click here for our model comparisons and limitations page.

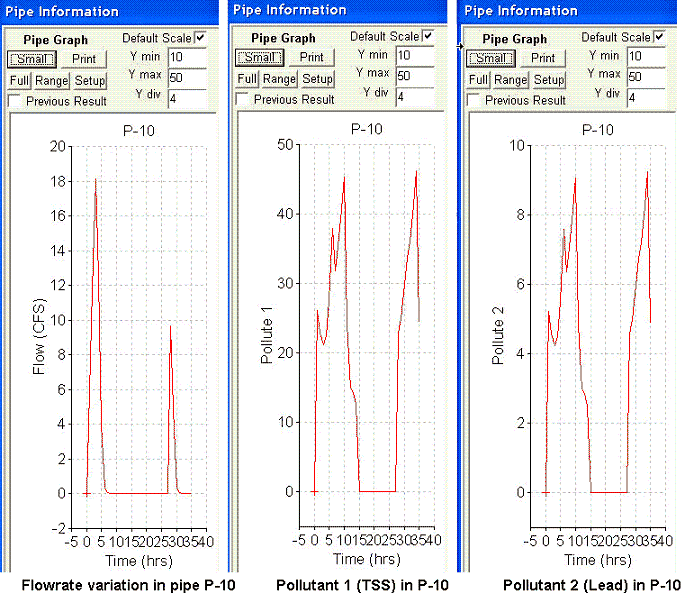

SWMM Results

KYPipe Pipe2018 SWMM
