Surge Operational Control Settings

The Surge Operational Control Settings screen is a very useful and sophisticated environment for presentations. It is also a unique and very useful tool for transient operation studies. This screen displays the operating conditions for pumps, tanks, valves, regulators and demands and allows the user to change these conditions and then launch a transient (Surge) analysis. Parameters such as a change in pump speed, pump startup and shutdown and changes in valve settings can be defined from this screen. Additionally, reservoir and tank levels, global demand factors and valve and regulator settings can be changed.

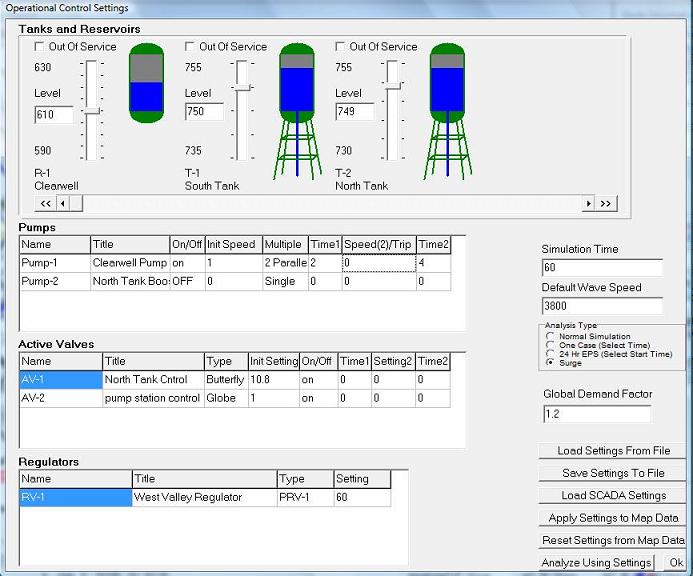

Operational Control Settings Menu:

Surge Operational Control Screen Menu
