Chapter 5 – Surge Protection
Surge Analysis and the Wave Plan Method
Supplementary Material: Example Problems and Solutions
Chapter 5 – Problem 5.16
5.16 Select the most appropriate surge protection device(s) for the following pipeline systems (the surge event and the location of pressure variation curves are provided for each pipeline) using the flowchart shown in Figure 5.39 of Section 5.7.

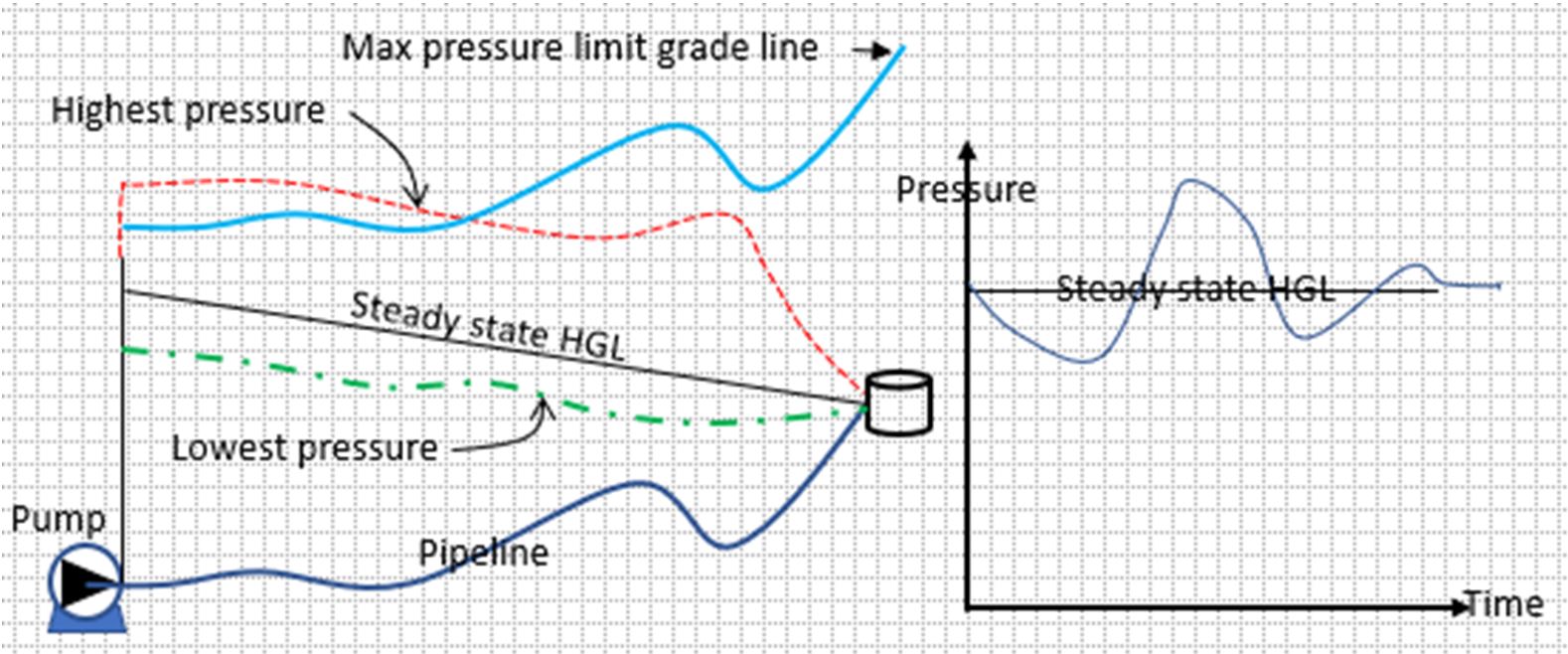

a. A pump trip event and the pressure variation at the pump discharge.

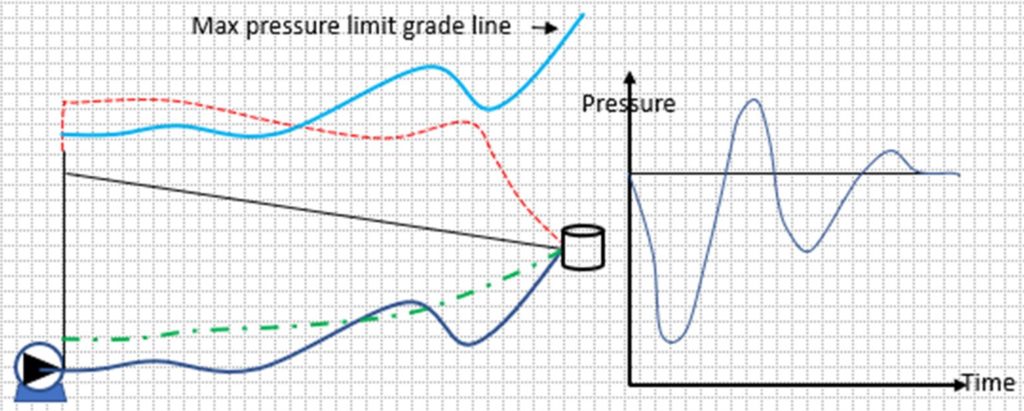

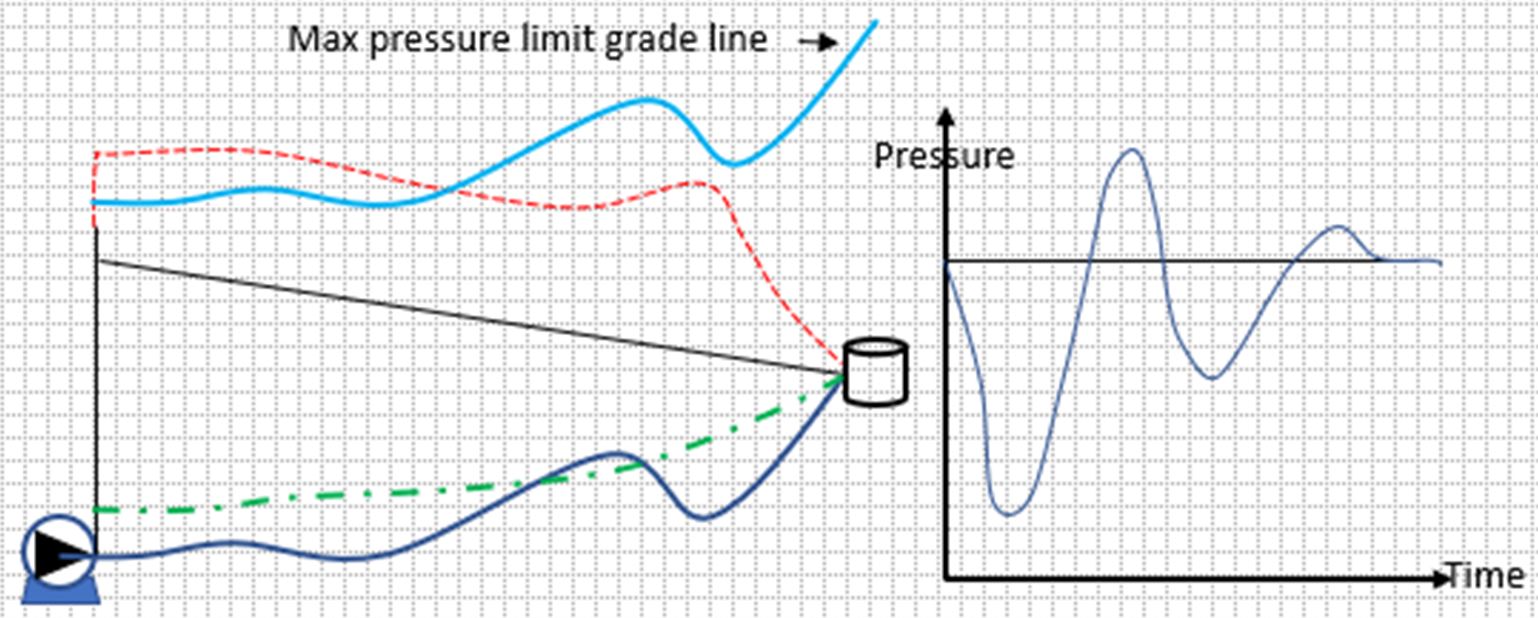

b. A pump trip event and the pressure variation at the pump discharge

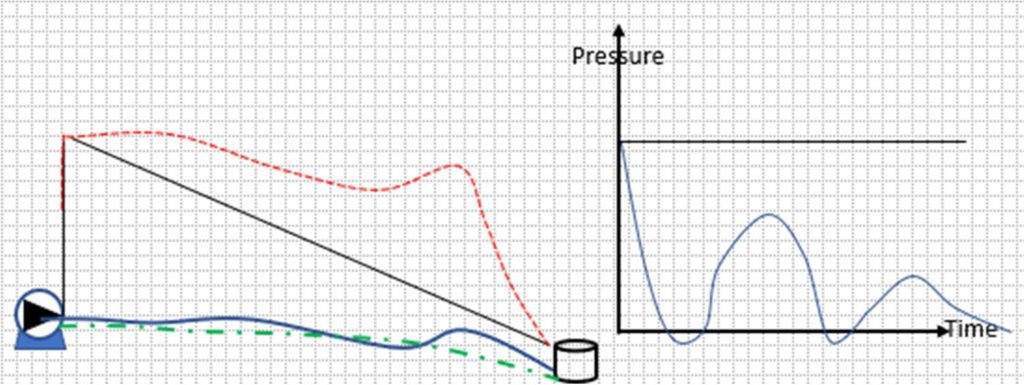

c. A pump trip event and the pressure variation at the pump discharge

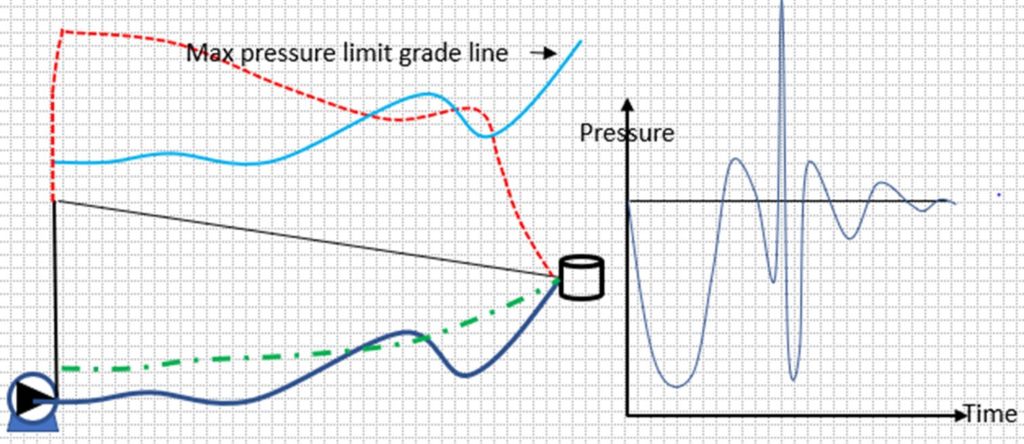

d. A pump trip event and the pressure variation at the pump discharge

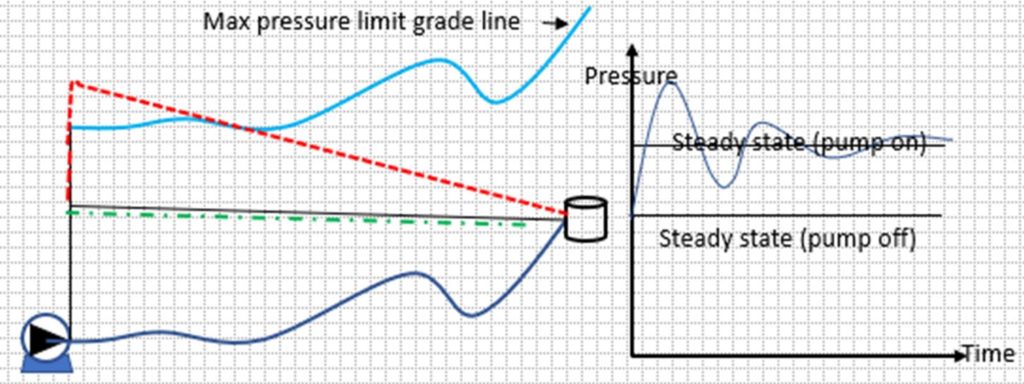

e. A pump startup and the pressure variation at the pump discharge

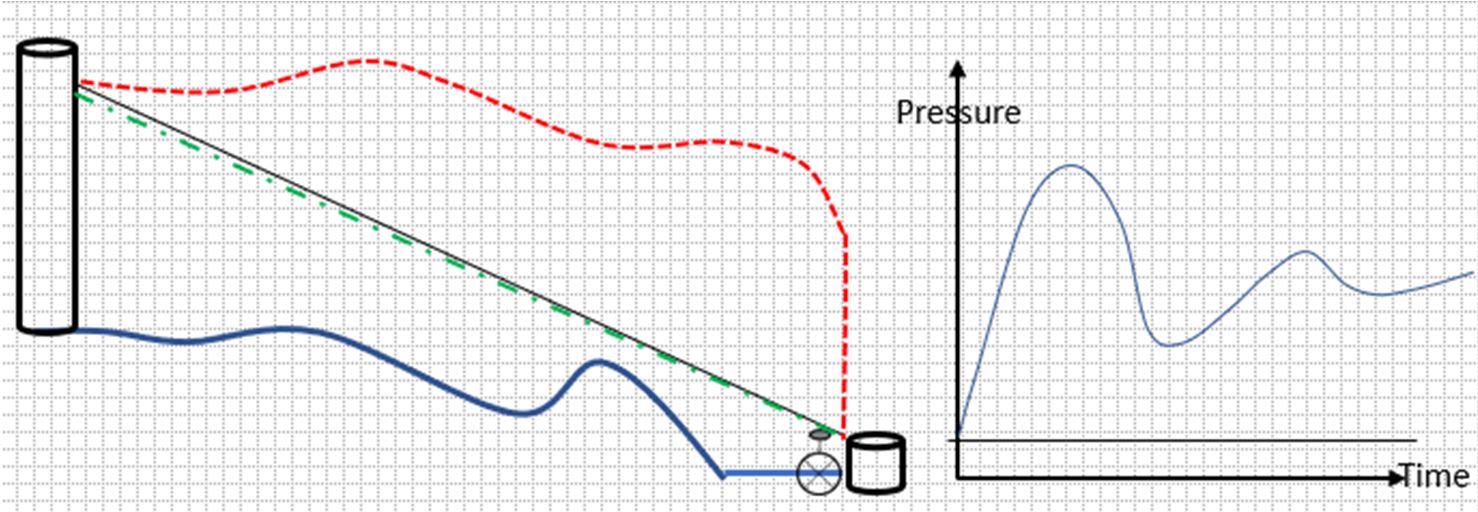

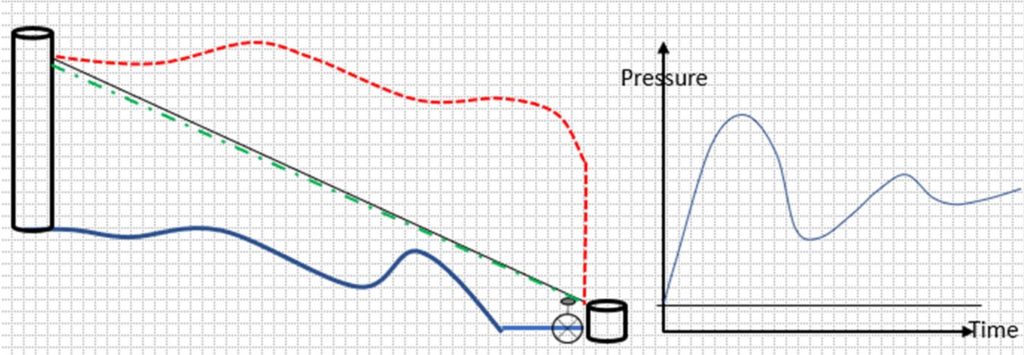

f. A valve closure on gravity main and the pressure variation upstream of the valve
